BDS 7 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-26) 4WD | Diesel

Product image 1

BDS 7 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-26) 4WD | Diesel

BDS 7 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-26) 4WD | Diesel

Elevate your Super Duty diesel with BDS's 7-inch radius arm lift kit—the ultimate upgrade for Ford F250/F350 models (23-26). This comprehensive package transforms your truck's presence and performance, delivering the stance that turns heads and the clearance to fit those massive 38" tyres you've been dreaming about. Everything you need comes in the box, so you can get straight to the good stuff: dominating the tracks and looking absolutely legendary doing it..

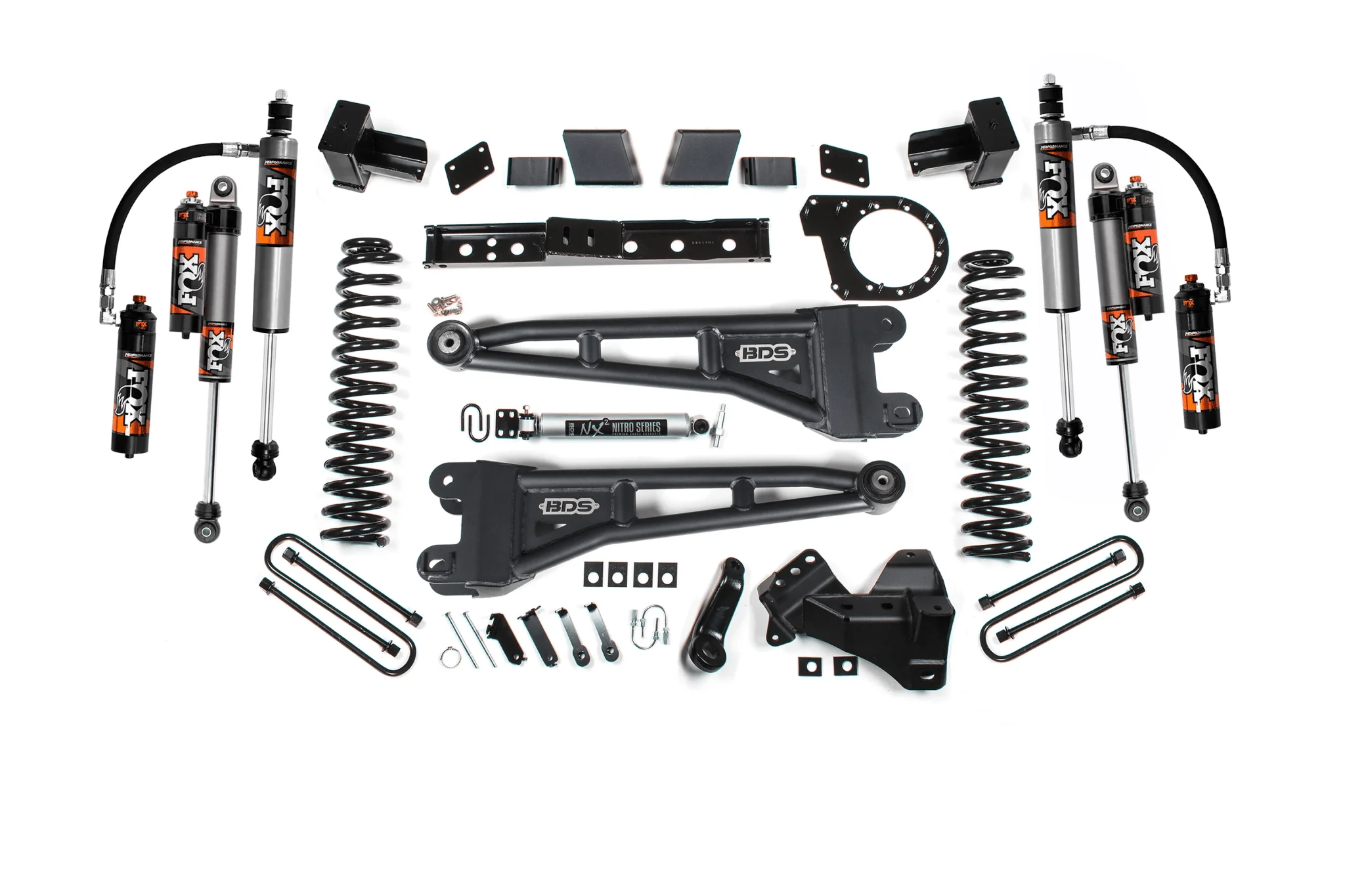

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of or FOX Performance shocks.

Features & Benefits

  • 100% bolt-on installation.
  • Pro-Ride Dual rate coil springs provide a remarkable ride through any terrain.
  • Heavy Duty tubular steel radius arms which correct caster while maximizing ground clearance.
  • Track bar relocation bracket and pitman arm to maintain proper steering angles for improved handling.
  • Fabricated steel blocks provide level stance front to rear.
  • Shock options from NX2 to Fox Performance Elite with DSC and everything in between.

Recommended Tires & Wheels

(Trimming may be required)

  • 38 x 13.5 with 17 x 10 and 5 in. Backspace
  • 38 x 13.5 with 18 x 10 and 5 in. Backspace
  • 38 x 13.5 with 20 x 10 and 5 in. Backspace

Rear Lift Option

Block Kit

  • Included in the base system.
  • Made of steel for high strength.
  • Designed to provide correct pinion angles.

Shock Option

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty



$9,661.10
BDS 7 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-26) 4WD | Diesel—
$9,661.10

Product Information

Shipping & Returns

Description

BDS 7 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-26) 4WD | Diesel

Elevate your Super Duty diesel with BDS's 7-inch radius arm lift kit—the ultimate upgrade for Ford F250/F350 models (23-26). This comprehensive package transforms your truck's presence and performance, delivering the stance that turns heads and the clearance to fit those massive 38" tyres you've been dreaming about. Everything you need comes in the box, so you can get straight to the good stuff: dominating the tracks and looking absolutely legendary doing it..

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of or FOX Performance shocks.

Features & Benefits

  • 100% bolt-on installation.
  • Pro-Ride Dual rate coil springs provide a remarkable ride through any terrain.
  • Heavy Duty tubular steel radius arms which correct caster while maximizing ground clearance.
  • Track bar relocation bracket and pitman arm to maintain proper steering angles for improved handling.
  • Fabricated steel blocks provide level stance front to rear.
  • Shock options from NX2 to Fox Performance Elite with DSC and everything in between.

Recommended Tires & Wheels

(Trimming may be required)

  • 38 x 13.5 with 17 x 10 and 5 in. Backspace
  • 38 x 13.5 with 18 x 10 and 5 in. Backspace
  • 38 x 13.5 with 20 x 10 and 5 in. Backspace

Rear Lift Option

Block Kit

  • Included in the base system.
  • Made of steel for high strength.
  • Designed to provide correct pinion angles.

Shock Option

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty
