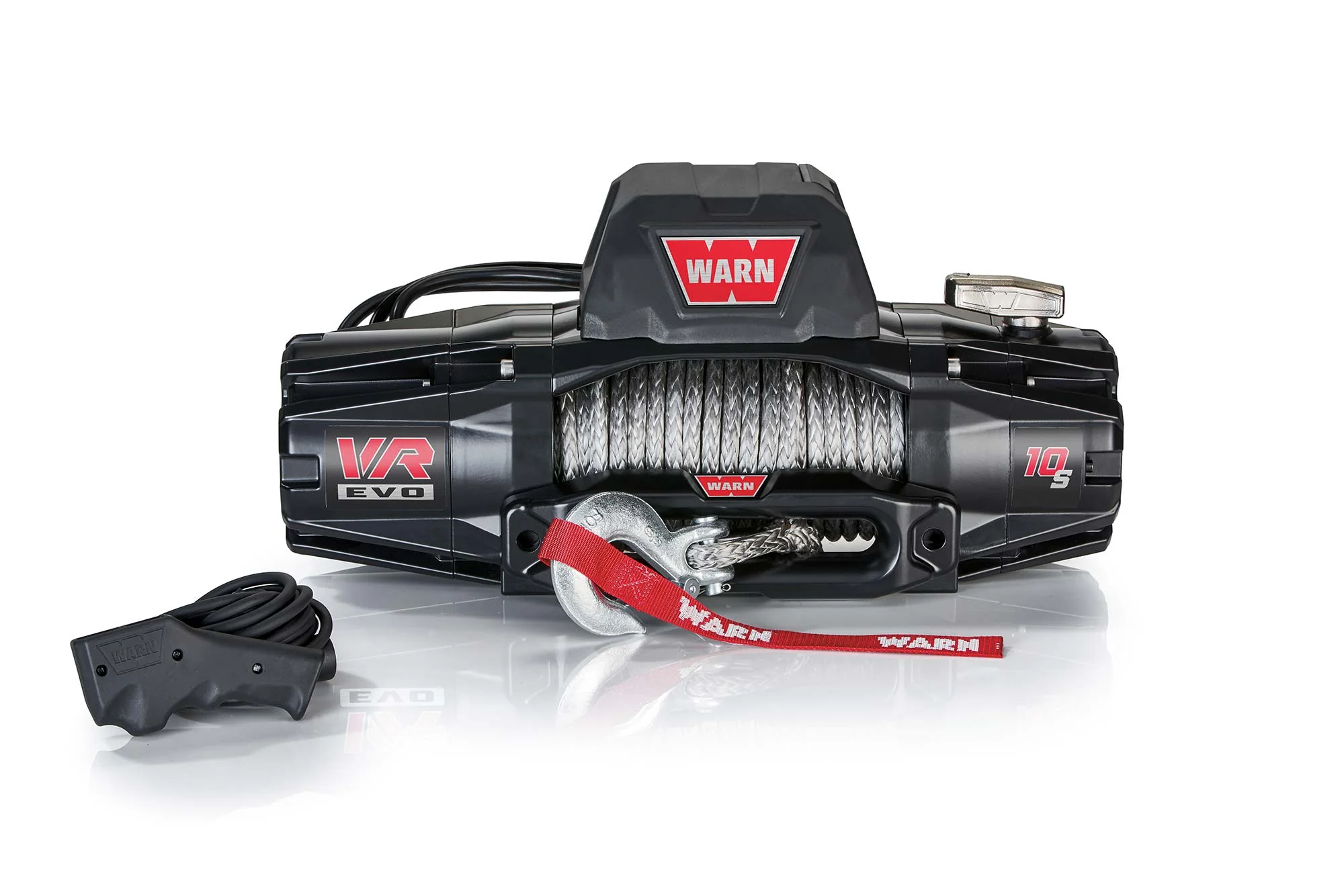

Ideal weight capacity and line speed for utes and larger 4x4s. The EVO 10 features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
IP68-rated waterproof winch construction keeps the elements out
High-performance Albright contactor delivers maximum reliability
Control packs can be relocated for low-profile installations
Durable, one-piece cast-aluminum tie-plate for added strength and durability
Two-in-one remote with wired AND wireless options for ease of use and versatility
Limited lifetime warranty for mechanical parts and 7 years on the electrical
Designed, engineered, and tested by WARN engineers in the U.S.A.

Specifications

Part number: EVO-10-S-103253

Rated line pull: 4536kg (10000 lbs.)

Motor: 12V series wound

Electrical controls: Albright Contactor

Remote Control: 2 in 1 plug-in remote with wireless capability and 3.5M lead

Geartrain: 3-Stage Planetary

Gear ratio: 218:1

Clutch (freespooling): Rotating ring gear

Brake: Spring brake

Drum diameter/Length: 6.73cm/23cm (2.5″/ 9.0″)

Shipping weight: 32.84 kg (72.4 lbs.)

Net product weight: 25.04 kg (55.2 lbs.)

Rope: 9.5mm x 27.4m (3/8″ x 90′)

Fairlead: Die cast hawse

Recommended Battery: 650 CCA minimum for winching

Battery leads: 25m x 2M

Finish: Powder coating over primer undercoating

Warn Winches
