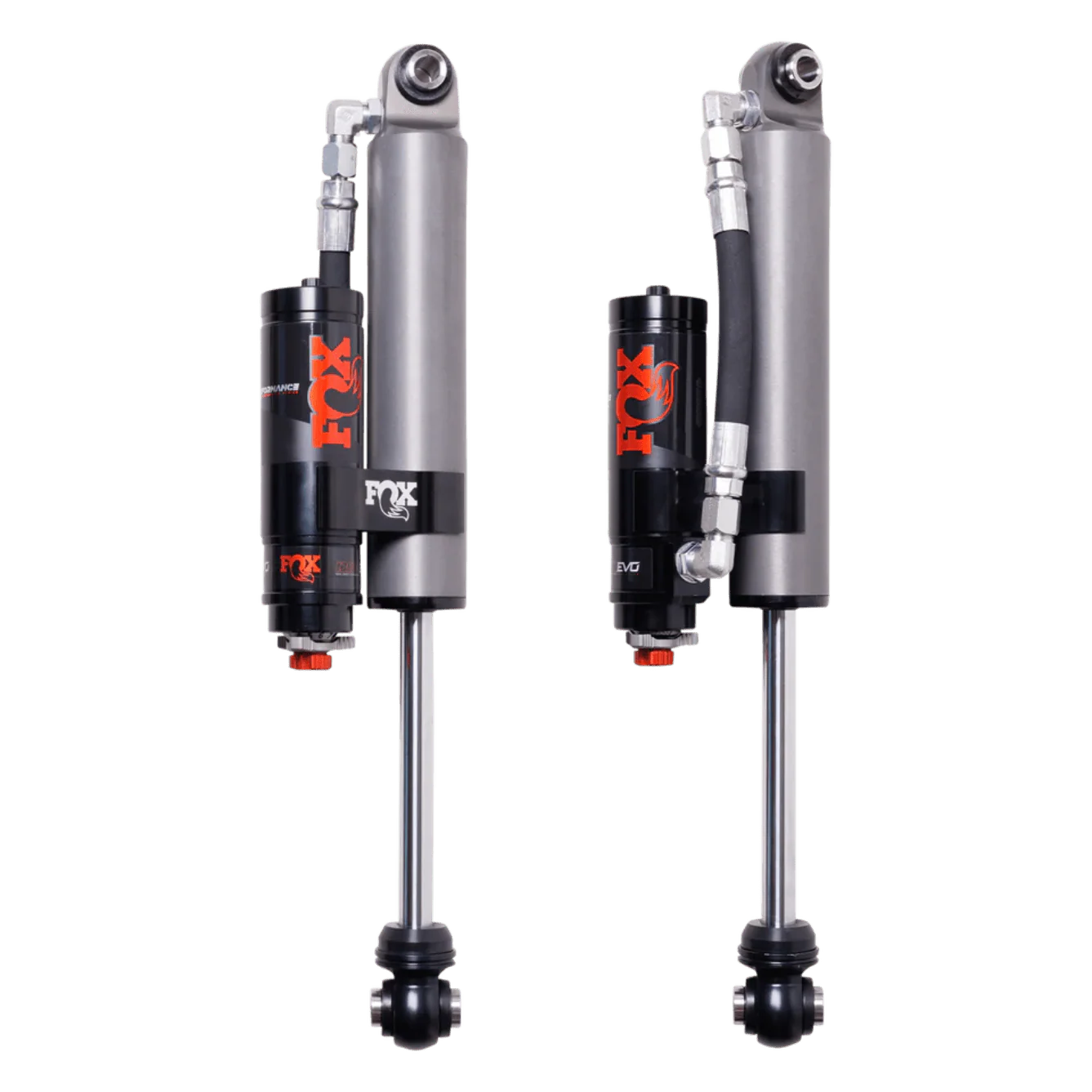

FOX PERFORMANCE ELITE SERIES 2.5 RESERVOIR SHOCK REAR | INEOS GRENADIER- ADJUSTABLE.

FOX Performance Elite Series 2.5 shocks featuring DSC EVO are a bolt-on solution tuned for the INEOS Grenadier. Optimise vehicle performance without compromising OEM reliability and vehicle performance.

Type III anodisation prevents corrosion and wear of the 2.5-inch aluminium bodies. External reservoirs increase oil capacity, allow additional shock stroke to maintain available travel, and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.

DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high speed compression without sacrificing small-bump sensitivity.

Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and improve on-road manners while remaining comfortable and in control.

PART NUMBER	883-26-273
FEATURES	2.5" impact-extruded and CNC-machined 6061-T6 Type III anodised aluminium body 7/8" hard chromed steel shafts Vehicle-specific tuning maximises performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster
SERIES	Performance Elite
TRAVEL	8.58
BODY	2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
BODY PLATING	Hard-anodized for a durable finish
COMPONENTS	Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT	7/8" hard chrome plated heat-treated alloy steel
PISTON	Race-developed high-flow piston design
VALVING	Application specific valving to maximize performance
SEALS	Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS	PTFE-lined, heat-treated, alloy steel spherical
EXTENDED LENGTH	23.48
COMPRESSED LENGTH	14.9
TOP MOUNT	Eyelet
BOTTOM MOUNT	Eyelet
FITMENT NOTES	Includes Resi to Body Clamp

Ineos Grenadier
